LT3029EMSE#PBF
Manufacturer:
Analog Devices
Mfr.Part #:
LT3029EMSE#PBF
Datasheet:
Description:
Voltage Regulators - Linear MSOP-16 EP SMD/SMT Positive Adjustable 19.5 V 500 mA
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |

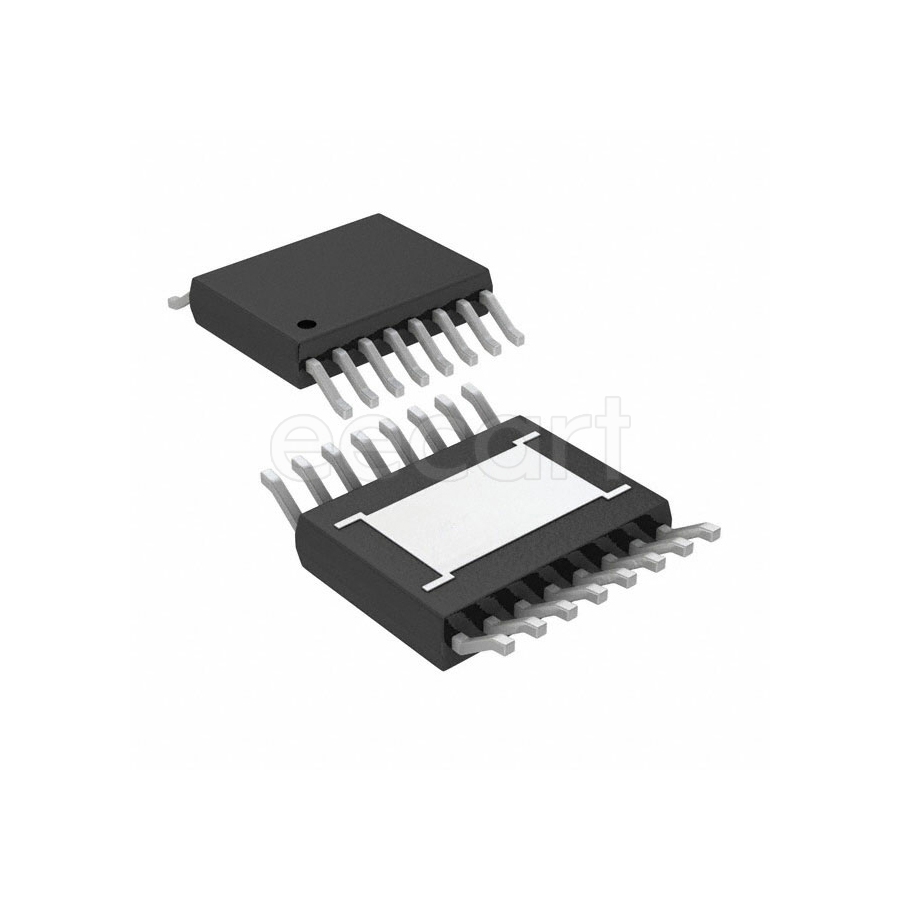

| Case/Package | MSOP |
| Packaging | Tube |
| RoHS | Compliant |
| Polarity | Positive |
| REACH SVHC | No SVHC |
| Dropout Voltage | 300 mV |
| Min Input Voltage | 1.8 V |
| Output Current | 500 mA |
| Output Voltage | 19.5 V |
| Output Type | Adjustable |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Max Output Current | 500 mA |
| Operating Supply Current | 55 µA |
| Quiescent Current | 55 µA |
| Max Input Voltage | 20 V |
| Number of Outputs | 2 |
| Current - Output 1 | 500 mA |
| Voltage - Output 1 | 19.5 V |
| Min Output Voltage | 1.215 V |
| Min Current Limit | 520 mA |
| Max Output Voltage | 19.5 V |
| Power Supply Rejection Ratio (PSRR) | 67 dB |
| Number of Regulators | 2 |
| Current - Output 2 | 500 mA |
| Voltage - Output 2 | 19.5 V |
| Schedule B | 8542390000 |
| Load Regulation | 2.5 mV |
| Line Regulation | 0.5 mV |
Stock: 2055
Distributors
pcbx
pcbxUnit Price$5.18178
Ext.Price$5.18178
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.18178 | $5.18178 |
| 10 | $4.01007 | $40.10070 |
| 25 | $3.83588 | $95.89700 |
| 50 | $3.66926 | $183.46300 |
| 100 | $3.50988 | $350.98800 |
| 300 | $3.35742 | $1007.22600 |
| 500 | $3.21158 | $1605.79000 |
| 1000 | $3.07211 | $3072.11000 |
